GPI G20 162000-03 Fuel Transfer Pump, Motor: 2000 rpm, 4/10 hp, 15 to 40 in L Suction Tube, 1 in Outlet, 20 gpm

  • Model Number: 162000-03
  • UPC: 031401007183
  • Store SKU: loading
  • GPI G20 162000-03 Fuel Transfer Pump, Motor: 2000 rpm, 4/10 hp, 15 to 40 in L Suction Tube, 1 in Outlet, 20 gpm

  • loading

    Promo Price: loading

  • Quantity
    • Availability:
      • Supplier SKU: loading
      • Web SKU: 103258294
    GPI 162000-03

    The GPI G20 Series Fuel transfer pump is the first gear pump to deliver TRUE 20 gpm. Delivering flow rates up to 20 gpm (76 L/min) in three available pump models, the G20 is the first pump in GPI's G series. Its new innovative design features simplified connection points that make attaching accessories fast and easy and its unique rotary gear design ensures long product life with minimal maintenance. The G20 is durable, manufactured from high-quality die-cast aluminum, easy to use and engineered to last, featuring a self-priming rotary gear design.

    Designated Fluid    :    Diesel, Gasoline, Kerosene
    Finish    :    Powder-Coated
    Flow Rate    :    20 gpm
    Inlet Connection Size    :    1 in
    Inlet Type    :    FNPT
    Material    :    Aluminum
    Motor Specifications    :    2000 rpm, 4/10 hp
    Mounting Type    :    Spin Collar
    Nozzle Type    :    Automatic Shut-off
    Outlet Connection Size    :    1 in
    Outlet Type    :    FNPT
    Pressure Rating    :    12 psi
    Suction Tube Length    :    15 to 40 in

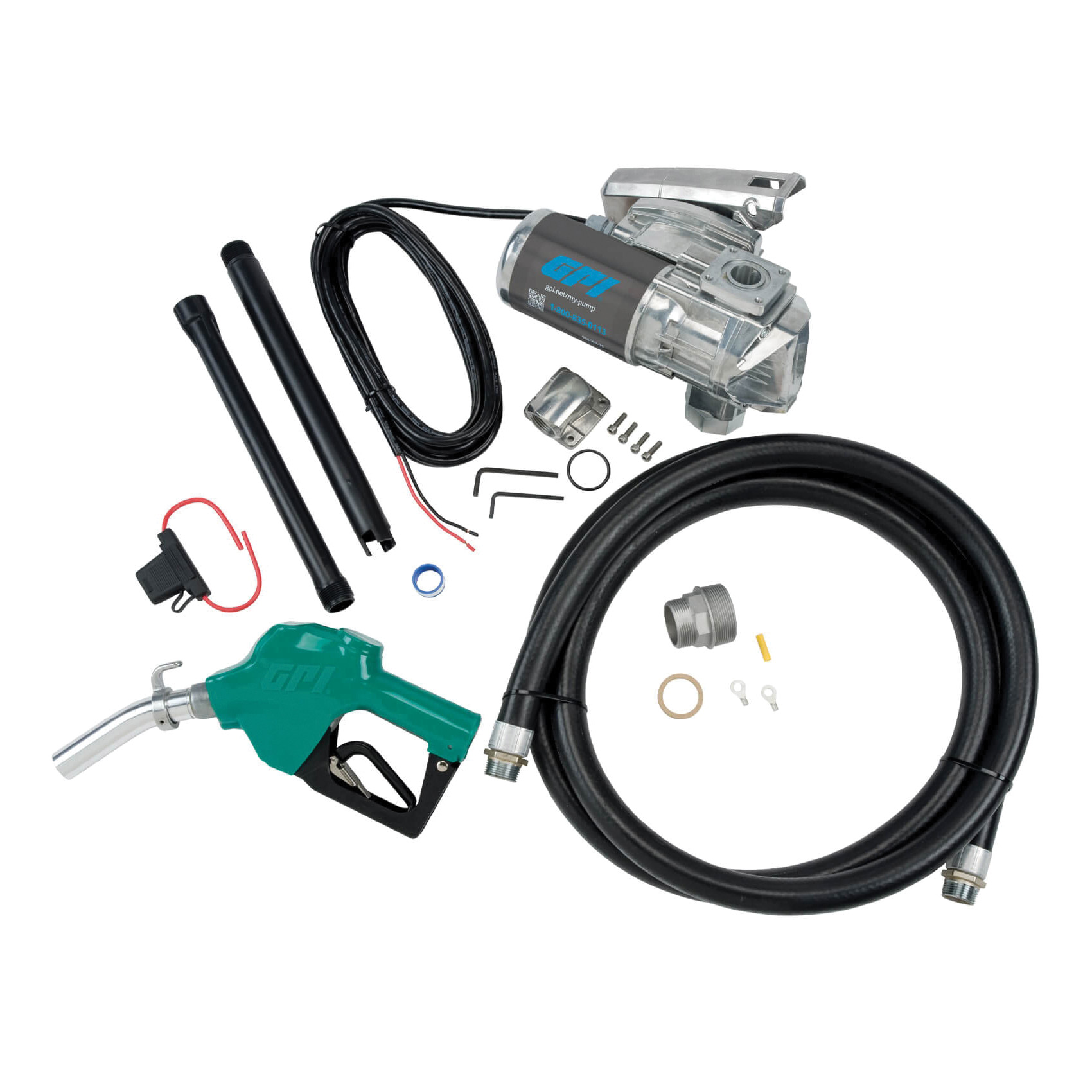

    • Quick fit modular makes it easy to attach a filter, meter or both to build your own custom system
    • Diecast aluminum housing is lightweight - weighs 19 lb low stress on tank
    • Powder-coated body to prevent rust and survive all weather conditions
    • Drip catch - lockable nozzle holder keeps your truck and tanks clean and stops fuel theft
    • Rotary gear design, fewer moving parts means less friction and wear on components, for minimal maintenance and a longer pump life
    • Factory installed power cord saves installation time
    • Spin collar-mount makes installation and pump orientation easy - fits any 2 in NPT tank
