Eaton Wiring Devices
Eaton Wiring Devices 604-SP Lamp Holder, 4-1/2 in Dia x 1-1/2 in H Dimensions, 250 VAC, 660 W, White
- Model Number: 604-SP
- UPC: 032664750625
- Store SKU:
-
Eaton Wiring Devices 604-SP Lamp Holder, 4-1/2 in Dia x 1-1/2 in H Dimensions, 250 VAC, 660 W, White
-
Promo Price:
-
-
- Supplier SKU:
- Web SKU: 100048727
- Supplier SKU:
Eaton Wiring Devices 604-SP

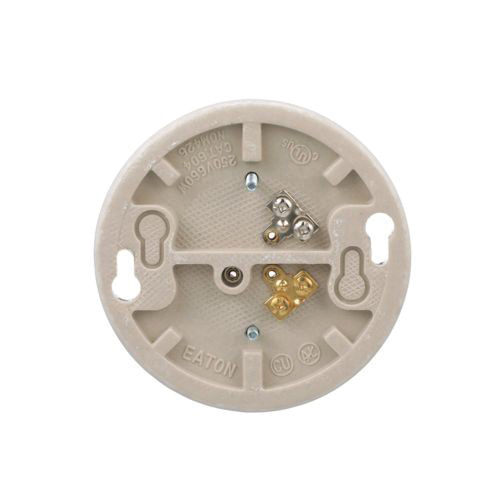

Porcelain. Mounts on 4 in outlet box with breakout for 3-1/4 in box mounting. One-piece with feed through. Terminal screws backed out for wiring without removing the interior. UL 496 listed, NOM Certified, meets CSA requirements. 250 V, 660 W.
California residents see Prop 65 WARNINGS
| Additional Information | : | Pull Chain Actuator, 14 lbf-in Torque Rating |
| Base Type | : | Medium |
| Color | : | White |
| Connection Type | : | Screw |
| Dimensions | : | 4.63 in Dia x 1.88 in H |
| Housing Material | : | Porcelain |
| Includes | : | (4) Feed Through Screw Terminals and Keyless Switch |
| Mounting Type | : | Box |
| Type | : | Interior |
| Voltage Rating | : | 250 VAC |
| Wattage Rating | : | 660 W |
| Wire Size | : | 14 to 10 AWG |
| Wiring Type | : | Feed Through |
- Top wire versions have terminal screws backed out ready for wiring without removing interior
- Push wire terminals are top wired with two-push-in terminals and two-screw terminals for continuous wiring
- Plastic models made with high-temperature thermoset plastic to reduce breakage
- Porcelain models made of high-strength insulator porcelain - pull chain versions feature removable interiors
- Mounts on 4 in outlet boxes with breakout for 3-1/4 in box-mounting
- Leads are 6 in (152.4 mm) 221 deg F (105 deg C) insulated stranded #16 AWG, stripped 3/4 in (19 mm)
- Pull chain devices include ball chain, 3 ft (0.9 m) of cord, connector and end bell
